ARCELLOR CONTROLSINSTRUMENTATION / PROCESS CONTROL
MADE FOR THE POINT OF CONNECTION

Instrumentation for critical connections.

Instrumentation valves, tube fittings, and manifolds for Central America, North America, the USA and Canada. All inquiries for these regions are handled only from our Alberta, Canada office. Factory in India.

Send a product inquiry Explore product families
01 / THE CONNECTIONScroll to discover FACTORY IN INDIA / ARCELLOR CONTROLS
FROM THE ARCELLOR CATALOG / FEATURED

Start with a component. We will narrow the material, connection and service conditions with you.

SELECTED COMPONENTACI / 02
Female-to-female needle valve
FEATURED COMPONENT / 02Instrumentation Valves
live schematic / ACI-417
95 MM NOMINAL12 IN BODYV-18TUBE ASSEMBLY / REV CX 07.218Y 24.601
01 / 03material + end connection review
14 yearsmanufacturing experience
10 sectorsapplications supported
Company approvalsEIL · BHEL · PETRONAS
DNV GLtwo 2023 type approvals
A CLOSER LOOK / 01—04

From a single fitting to the whole instrument line.

Four starting points. Each application asks a different question. Follow the components, then tell us what yours needs to do.

Skip story / view all families
Bulkhead union tube fittingBulkhead union tube fitting / official catalog
01 / 04CONNECT

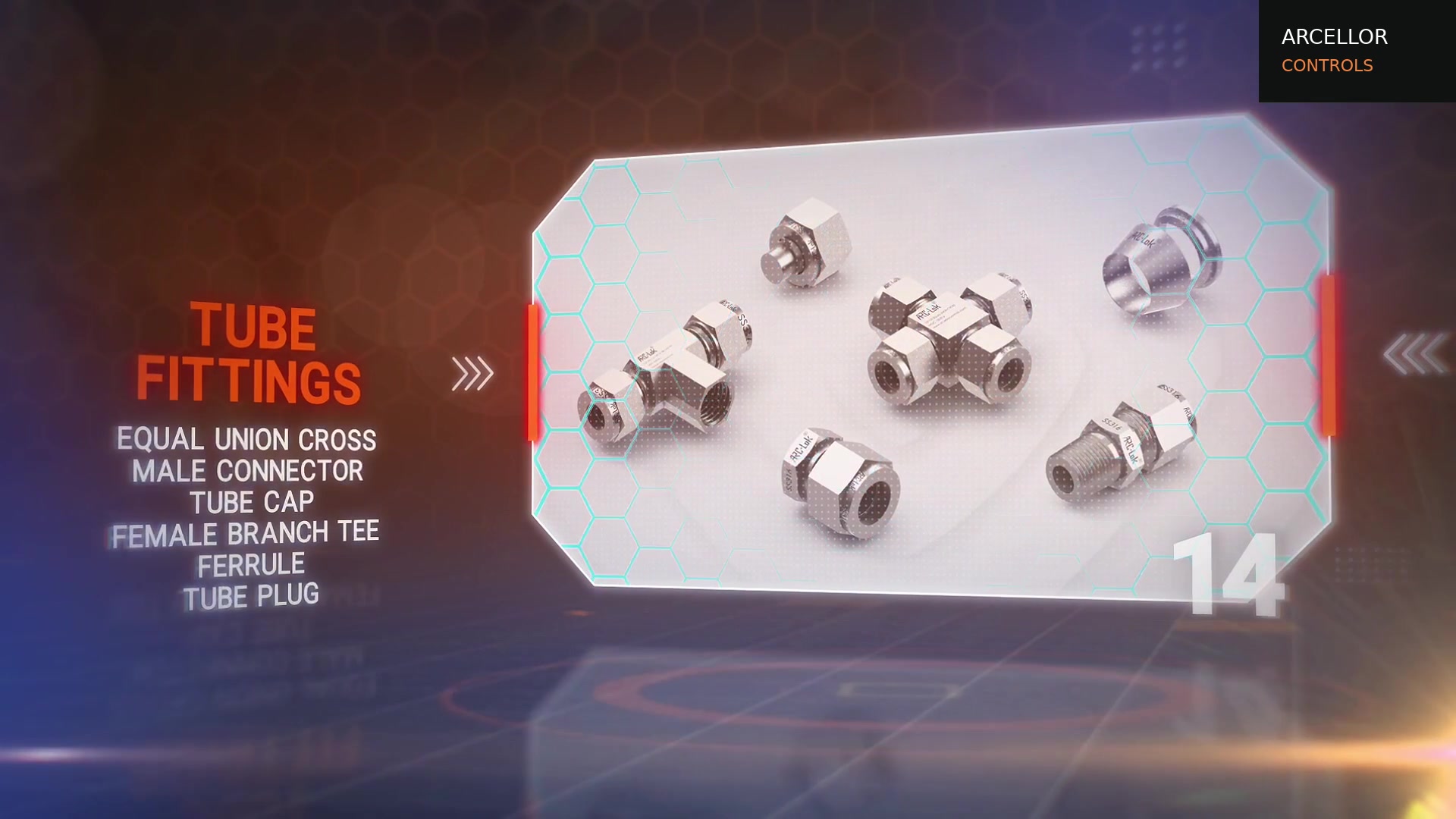

Instrumentation Fittings

Precision tube fittings for instrumentation, process impulse lines, hydraulic circuits, and assemblies that need a reliable connection under pressure.

Arcellor Controls' catalogue includes unions, elbows, tees, crosses, reducers, bulkhead fittings, adapters, caps and plugs for connecting instrument tubing and pipework. Compression tube fittings use a ferrule connection, while threaded or welded connections require a matching interface. The pictured bulkhead union is one example, not a specification for the whole range.

BEFORE SELECTION, CONFIRM
  • Tube outside diameter, wall thickness and connection type
  • Operating pressure, temperature and process medium
  • Material grade, documentation and installation constraints
Selection guide Catalog

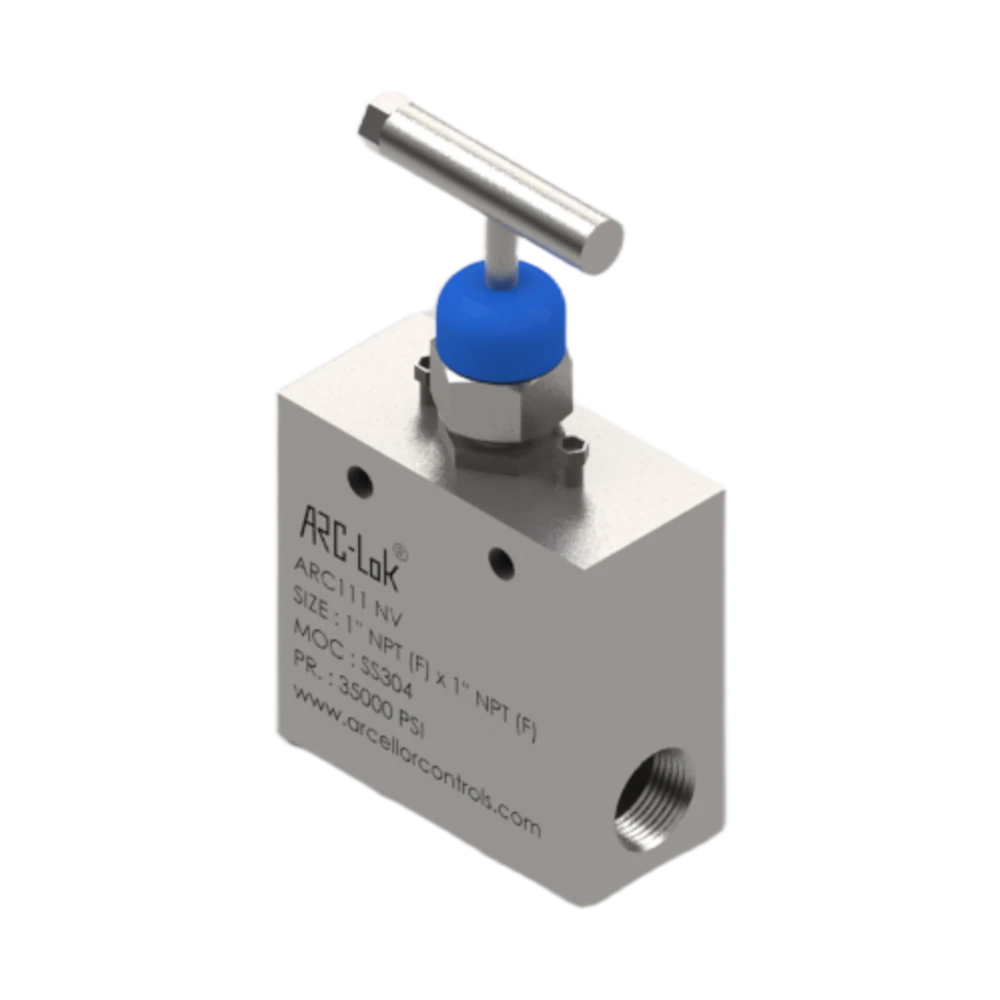

Female-to-female needle valveFemale-to-female needle valve / official catalog
02 / 04CONTROL

Instrumentation Valves

Instrumentation valves selected for isolation, regulation, calibration, and dependable service across demanding process and utility applications.

Arcellor Controls' instrumentation-valve catalogue covers needle, ball, gate, globe, check, manifold and monoflange valves. A needle valve moves a tapered stem toward its seat for fine adjustment of a small flow; a ball valve serves a different isolation duty, and a check valve controls reverse flow. Select the valve function before confirming the model, end connections and operating limits. The photo shows a female-to-female needle valve.

BEFORE SELECTION, CONFIRM
  • Isolation, metering or non-return duty
  • Pressure, temperature, media and required flow direction
  • Port size, end connections, actuation and test documentation
Selection guide Catalog

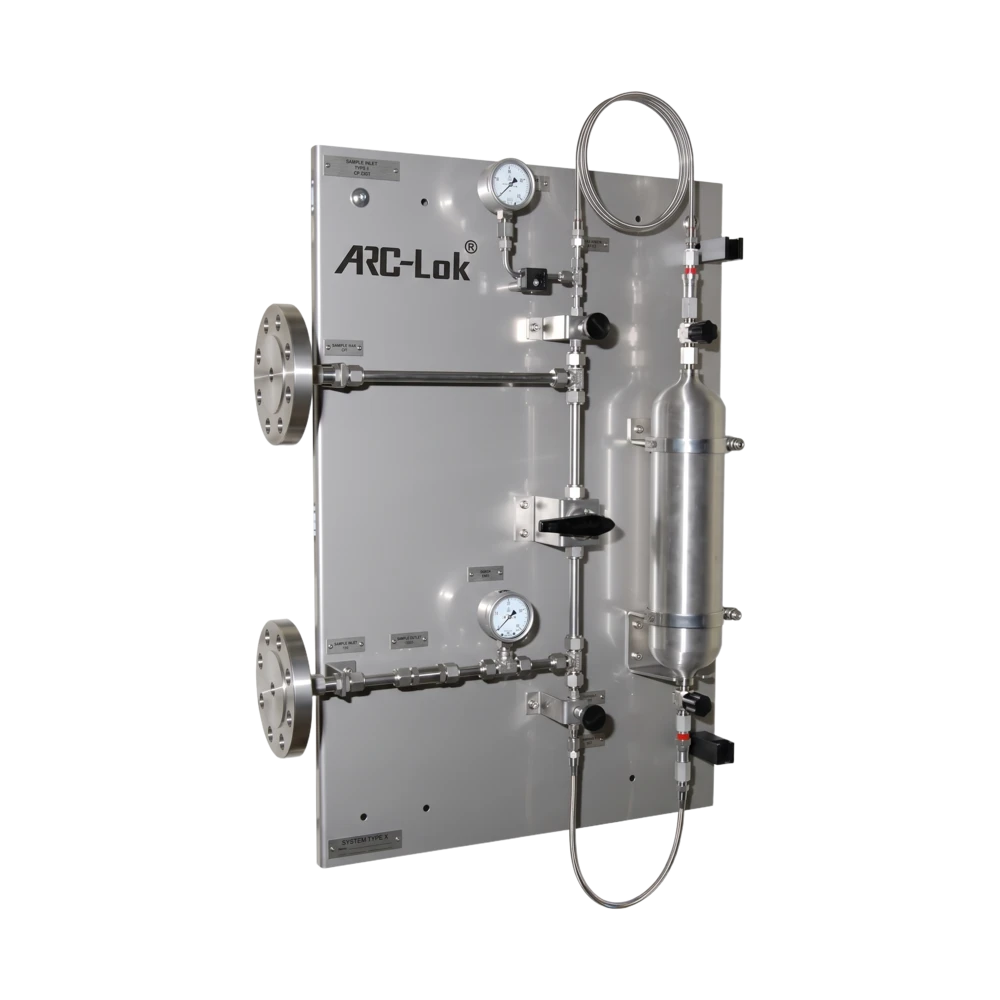

ARC-Lok Sampling SystemARC-Lok Sampling System / official catalog
03 / 04SAMPLE

Sampling System

ARC-Lok sampling systems organize process-sample withdrawal and collection in a coordinated assembly. The supplied panel photo shows tubing, isolation valves, pressure gauges and a sample cylinder; the final arrangement is reviewed against your process requirements.

A process sampling system provides an organized route from the sampling point to a collection vessel or analysis interface. Its configuration depends on the sample phase, process pressure and temperature, required sample quantity and handling procedure. Review whether flushing, purge or return connections and sample conditioning are needed for the application. The owner-supplied ARC-Lok panel is a product example, not a universal flow diagram; each installation needs its approved layout, material compatibility review and operating procedure.

BEFORE SELECTION, CONFIRM
  • Sample source, medium and phase
  • Operating conditions and required sample destination
  • Connections, material compatibility and documentation requirements
Selection guide Catalog

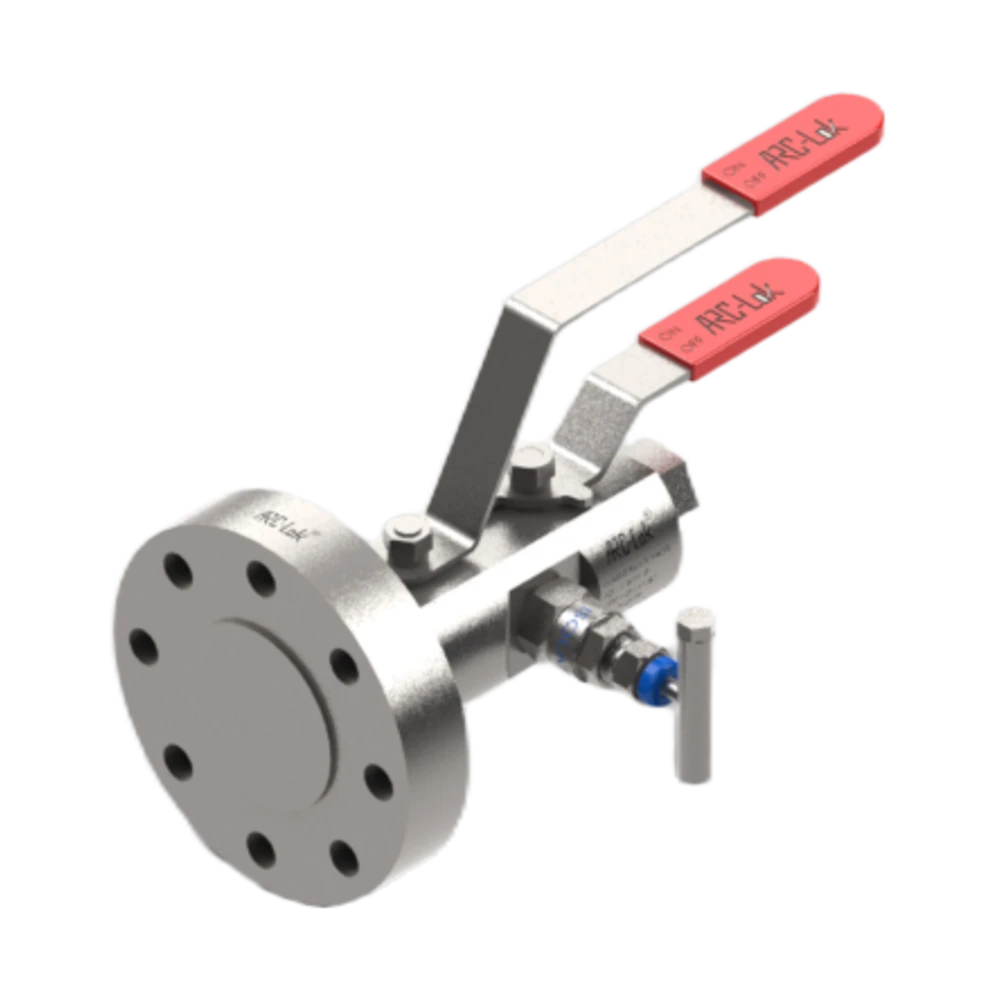

DBB ValvesDBB Valves / official catalog
04 / 04DISTRIBUTE

DBB Valves

Double-block-and-bleed valve assemblies for isolation and bleed or vent functions in process and instrumentation lines. Confirm the exact valve arrangement and service conditions against the project drawing.

A double-block-and-bleed arrangement combines two isolation elements with a bleed connection for the space between them. It can support instrument isolation and controlled venting when selected and operated for the process duty. Arcellor Controls' catalogue describes block/isolate and bleed/vent functions; the supplied ARC-Lok product photo shows a flanged arrangement. Confirm the internal flow path, flange interface, isolation procedure and pressure-temperature limits for the quoted model.

BEFORE SELECTION, CONFIRM
  • Required block, bleed and vent arrangement
  • Process and instrument connections
  • Pressure, temperature, medium and material requirements
Selection guide Catalog
THE NEXT SPECIFICATION IS YOURS.Tell us about your application
Already have a product code?
Code, drawing, or photo all work

Seeking Distributors & Regional Partners

Represent Arcellor Controls in your region. We welcome partnership inquiries from Central America, North America, the USA and Canada.

Become a partner
01 / the Arcellor Controls difference

A manufacturing partner for the details that keep production moving.

Catalogs show what exists. We help match the right component to your line, your machine, and your next shipment.
Custom-engineered to your exact specifications, with complete OEM and private-label branding solutions available

01

Application-first

We read beyond the product code: medium, pressure, temperature, end connection, tolerance, and the constraint that cannot move.

02

Validated supply

Product and process validation, inspection facilities, and clear documentation keep fit, evidence, lead time, and trade-offs visible.

03

Ready for your site

Clear labels, customized packaging, organized kits, and the documentation your quality team needs to close the loop.

FIELD NOTE / 01 · PRODUCTS

Precision you can see.

A quick look at the components behind our instrumentation and process-control work.

Watch the company film
ACI / MOTION STUDY01 — PRODUCTS · 1080P
ARCELLOR CONTROLS ● COMPANY FOOTAGE
02 / product families

Start with the part of the system you know.

Choose a family as a starting point. We will narrow it around the application, material, approval, and delivery requirement.

family / 01application + approval review

Instrumentation Fittings

Precision tube fittings for instrumentation, process impulse lines, hydraulic circuits, and assemblies that need a reliable connection under pressure.

SS 304 / 316 / 316LNPT / BSP / tube endsASTM, ASME, EN
Read the Instrumentation Fittings guide Inquire about Instrumentation Fittings
selected products

Browse our product families and ARC-Lok sampling products. Ask our team for current drawings and model-specific specifications.

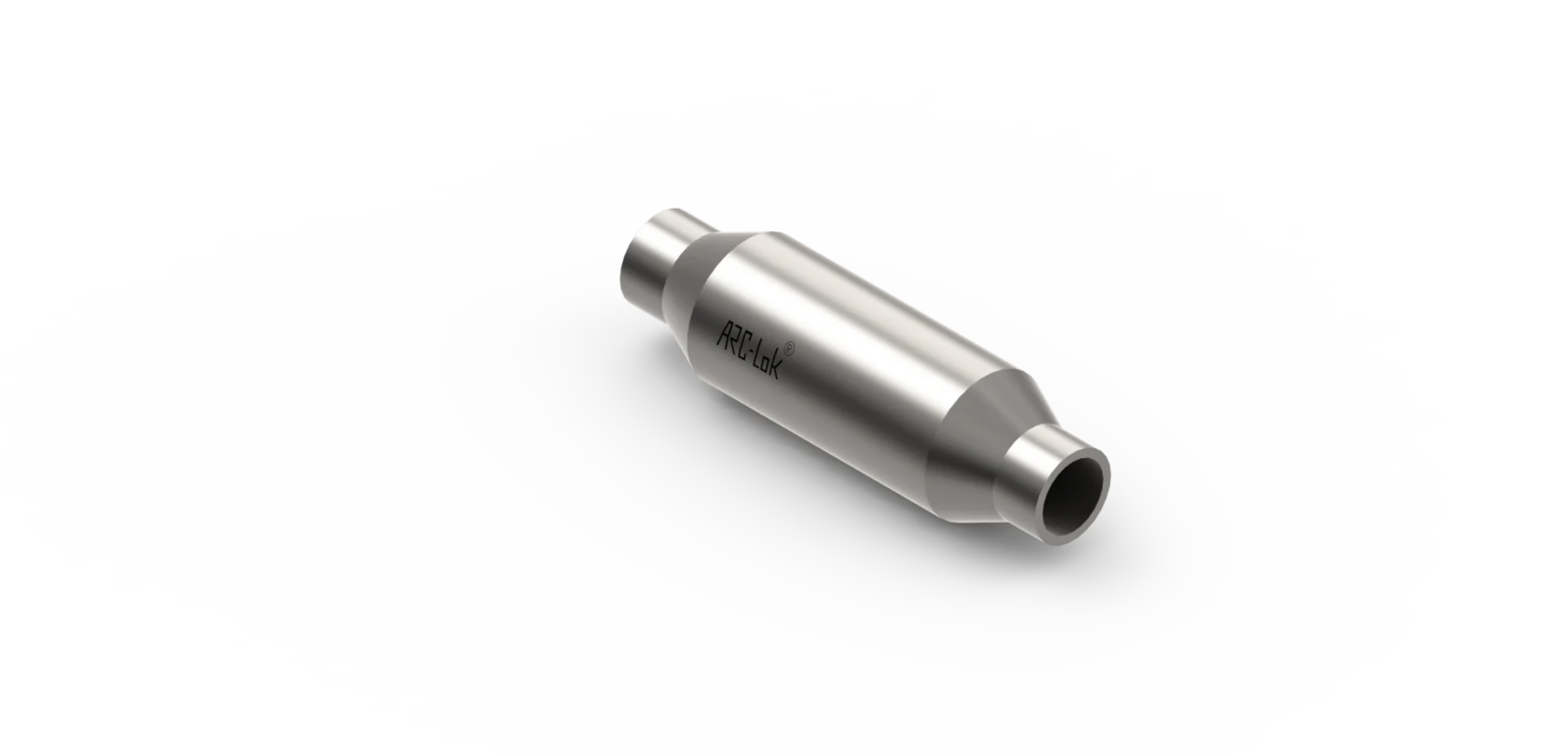

Product photos and links use the official Arcellor Controls catalog where available. Sampling Cylinder and Sampling System are listed for inquiry; request their current product photos, drawings and specifications from the technical desk.

03 / material & specification language

The right material is part of the answer.

Material is never a decorative line on an inquiry. It determines how a component behaves around pressure, heat, cleaning, corrosion, and time.

Discuss a material requirement
Material familyWhy it is specifiedCommon fit
INCONEL 625 / MONEL 400Corrosion resistance, demanding serviceChemical, marine, oil & gas
304 / 316L stainlessCorrosion resistance, cleanabilityProcess, instrumentation, washdown
Carbon steelStrength, availability, valueHydraulic, structural, utility
Copper / brassThermal transfer, machinabilityControls, refrigeration, service
PTFE / PEEK/VITONChemical compatibility, low frictionChemical, pneumatic, specialty
Need a different grade, finish, or certificate? Put the requirement in the inquiry and we will flag availability before we quote.
FIELD NOTE / 02 · PROCESS

Built by the people behind every detail.

Step inside the technical desk and workshop where every specification becomes a practical decision.

Watch the company film
ACI / MOTION STUDY02 — PEOPLE & PROCESS · 1080P
ARCELLOR CONTROLS ● COMPANY FOOTAGE
04 / industries in the field

Components that understand the environment around them.

PetrochemicalEnergyFoodBiotechnologyCNGPharmaceuticalPulp & paperMiningMarinePacking & printing
05 / from brief to delivery

A short path through a technical decision.

Four steps. No black-box handoff. Open questions stay visible until they are resolved.

01

Brief

Send the product code, drawing, sample, or the failure that brought you here.

02

Qualify

We reconcile dimensions, materials, ratings, connections, and service conditions.

03

Quote

You receive a clear quote with lead time, assumptions, and documentation options called out.

04

Deliver

Approve the path. We coordinate customized packaging, documentation, and delivery in one thread.

06 / inside Arcellor Controls

See the work behind the specification.

Watch footage from our factory in India for a closer look at the people and processes behind the components. Our Lethbridge office serves U.S. buyers.

Read the founder’s message

Transcript of the recorded message. Names and historical claims are preserved as spoken.

Hello friends, I am Dilip Singh Chauhan.

I am the founder and director of Arcellor Controls India.

We are a manufacturing company based in Ahmedabad, Gujarat.

Company was founded in 2013

and has been working in manufacturing sector

of instrumentation fittings and valves from last 10 years.

At Arcellor Controls, we are just not in the business of

manufacturing valves and fittings,

but we are in the business of shaping the future.

Our commitment to quality, innovation and customer satisfaction

drives everything we do.

We would like you to support us in our initiative

and help us becoming the largest company in India.

company film / ACIplay when ready

Company film · 1080p · factory footage from India

Forging in progress 1080P
The forging press 1080P
People behind the process 1080P
07 / quality records

Company approvals, type approvals, and certifications.

Company approval references, product type approvals and tests, and ISO certifications are grouped separately. Request current documents and confirm the scope applicable to your product or project.

APPROVAL / 01

EIL

Approved company

APPROVAL / 02

BHEL

Approved company

APPROVAL / 03

PETRONAS

Approved company

Type approvals & tests

Product-specific record scope.

Check the current supporting document for the covered model, configuration and test conditions.

  • DNV GL / TUBE FITTINGSF1387:2023Type approval
  • DNV GL / VALVESMSS-SP-99:2023Type approval
  • TÜV RHEINLAND / VALVESLife-cycle testCyclic test; confirm tested model scope
  • FITTINGS / PRODUCT TESTInterchangeability testConfirm product and test coverage
IN-HOUSE TESTING / FACILITY

Testing equipment, in-house.

In-house equipment supports hardness, material identification, ultrasonic and pressure testing. Confirm the applicable method and scope for each product with the technical desk.

FACILITY PHOTOGRAPHYPhotos will be added when provided.
EQUIPMENT / 01

Rockwell hardness testing machine

Hardness measurement for applicable materials.

EQUIPMENT / 02

PMI (Positive Material Identification) machine

Supports material identification of metal components.

EQUIPMENT / 03

UT (Ultrasonic Testing) machine

Ultrasonic testing for components within the applicable scope.

EQUIPMENT / 04

In-house type-test machines

Dedicated machines for product type testing.

EQUIPMENT / 05

Pneumatic testing bench

Pneumatic pressure testing.

UP TO 800 BAR
EQUIPMENT / 06

Hydrostatic test bench

Hydrostatic pressure testing.

UP TO 50,000 PSI

Request current company approval, type approval and test records before specification or purchase. Confirm document validity and applicable product scope with the technical desk.

Certifications & manufacturer assessmentISO 9001 · ISO 14001 · ISO 45001 · GL Manufacturer Assessment Certificate
View all quality records Request approval & test documents
08 / open a product inquiry

Send the tricky one.

No catalog maze. Tell us what the line needs, attach the known constraints in plain language, and we will return a useful next move.

product code, drawing, or photo quantity + required-by date delivery location
Request a quoteCatalog-led inquiries welcome.
ACI / 01

Your inquiry is not sent until you send the draft in your email app. No order commitment.

09 / useful answers

Questions before the question?

Still unsure where to begin? That is exactly what the Arcellor Controls technical desk is for.

Talk to the desk
Yes. Send a drawing, marked-up sketch, sample dimensions, or a photo with the known constraints. We turn the reference into a clear bill of material, identify what needs confirmation, and return a practical path that can be quoted.
